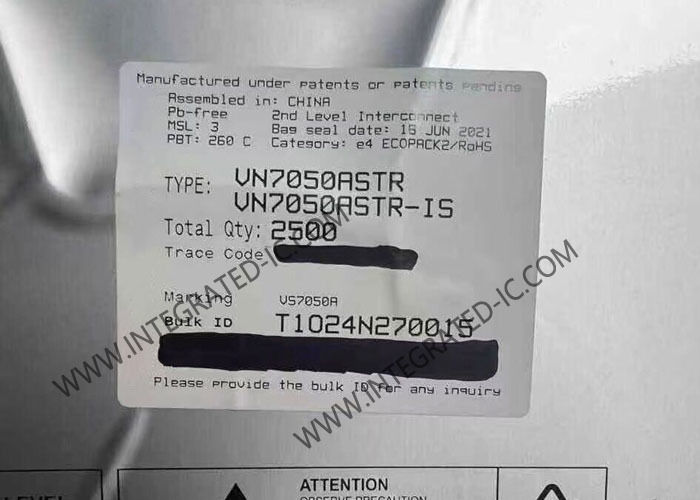

VN7050ASTR Integrated Circuit Chip VIPower High-Side Driver SO8 Load Drivers

VN7050ASTR Integrated Circuit Chip VIPower High-Side Driver SO8 Load Drivers

Product Description Of VN7050ASTR

VN7050ASTR is High-side driver with MultiSense analog feedback for automotive application.
VN7050ASTR is single channel high-side drivers manufactured using VIPower M0-7 technology and housed in SO-8 packages. The devices are designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, and to provide protection and diagnostics.

Specification Of VN7050ASTR

Features Of VN7050ASTR

General
– Single channel smart high-side driver with MultiSense analog feedback
– Very low standby current
– Compatible with 3 V and 5 V CMOS outputs
MultiSense diagnostic functions
– Multiplexed analog feedback of: load current with high precision proportional current mirror, VCC supply voltage and TCHIP device temperature
– Overload and short to ground (power limitation) indication
– Thermal shutdown indication
– OFF-state open-load detection
– Output short to VCC detection
– Sense enable/disable
Protections
– Undervoltage shutdown
– Overvoltage clamp
– Load current limitation
– Self limiting of fast thermal transients
– Configurable latch-off on overtemperature or power limitation with dedicated fault reset pin
– Loss of ground and loss of VCC
– Reverse battery with external components
– Electrostatic discharge protection

Applications Of VN7050ASTR

All types of Automotive resistive, inductive and capacitive loads
Specially intended for Automotive Turn Indicators (up to P27W or SAE1156 or LED Rear Combinations)
Protected supply for ADAS systems: radars and sensors
