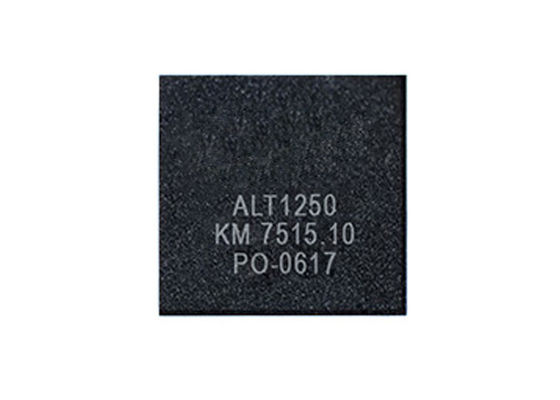

ALT1250 IoT Chip Altair Cellular IoT Chipset Dual Mode LTE-M/NB-IoT Modem WLCSP Package
Product Description Of ALT1250
ALT1250 is Altair Cellular IoT chipset——Ultra Low Power, Ultra Small, Most Secured and Highly Integrated dual mode LTE-M/NB-IoT modem.
ALT1250 modem is ideal for space-constrained applications. Its high level of integration and minimal required external components enables module sizes as small as 100mm², making it perfect for the smallest cellular IoT modules on the market.
With support for dual-mode LTE-M/NB-IoT, GNSS & cellular-based positioning, an integrated MCU, and an iSIM, the ALT1250 packs a punch without compromising on size.
Specification Of ALT1250
| Part Number: |
ALT1250 |
Package: |
WLCSP |
| Module Sizes: |
As Small As 100mm² |
Positioning: |
Support Dual-mode LTE-M/NB-IoT, GNSS And Cellular-based |
| Interfaces: |
UART, SPI, FS USB2.0, USIM Or EUICC, I2S/PCM Audio, GPIOs, I2C, Auxiliary ADC And PWM |
Type: |
Dual Mode LTE-M/NB-IoT Modem |
Tech Highlights Of ALT1250
LTE Radio Technology Support
- CAT-M1 R13 with DL/UL speeds of 300/375 Kbps
- CAT-M1 R14 with DL/UL speeds of 588/1119 Kbps
- CAT-NB1 R13 with DL/UL speeds of 27/65 Kbps
- CAT-NB2 R14 with DL/UL speeds of 127/158 Kbps
Highly Integrated SoC
- 6th generation Software Defined Radio architecture featuring maximum flexibility at extremely low power
- Integrated in-chip: LTE CAT-M1/NB1/NB2 modem with 2G fallback, GNSS, radio transceiver, PLL supporting TCXO inputs, PMU with voltage regulators and RTC
- Integrated ARM Cortex M4 MCU subsystem for customer developed applications
- Carrier grade integrated SIM (iSIM)
- Secure boot architecture and a robust hardware-based security framework
- Integrated voice processing for VoLTE and Voice Over-the-Top applications
- WLCSP packaging for low cost devices
Location Services
- Assisted GPS and GLONASS navigation systems are supported
- Cellular-based location
OneSKUTM
- Single hardware design supports multiple bands
- HD-FDD: 1, 2, 3, 4, 5, 8, 12, 13, 14, 18, 19, 20, 25, 26, 27, 28, 66, 71, 85, 255
- HD-TDD: 33, 34, 35, 36, 37, 39
- Support for 410-467.5 MHz bands 31, 72, 73, 87, 88
- NTN: n255, n256
Interfaces
- UART, SPI, FS USB2.0, USIM or eUICC, I2S/PCM audio, GPIOs, I2C, Auxiliary ADC and PWM
Features Of ALT1250
Ultra-Low Power Consumption
Smallest Form Factor
Robust Security
Seamless Integration
