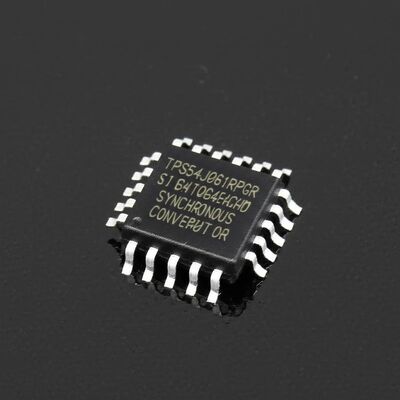

TPS54J061RPGR Integrated Circuit Chip 6A Synchronous Buck Converter With D-CAP3™ Control Mode
The TPS54J061RPGR is a high-efficiency, compact synchronous buck converter featuring adaptive on-time D-CAP3 control mode. This device offers exceptional ease of use and minimal external component requirements, making it ideal for space-constrained power systems.
Product Overview
The TPS54J061RPGR integrates high-performance MOSFETs and delivers a precise ±1% 600mV reference voltage across a junction temperature range of -40°C to +125°C. Key advantages include minimal external component count, rapid load-transient response, accurate load and line regulation, auto-skip or FCCM mode operation, adjustable soft-start control, and compatibility with ceramic capacitors without requiring external compensation.
Technical Specifications
| Function |
Step-Down |
| Output Configuration |
Positive |
| Topology |
Buck |
| Output Type |
Adjustable |
| Number of Outputs |
1 |
| Voltage - Input (Min) |
2.7V |
| Voltage - Input (Max) |
16V |
| Voltage - Output (Min/Fixed) |
0.6V |
| Voltage - Output (Max) |
5.5V |
| Current - Output |
6A |
| Frequency - Switching |
630kHz, 1.1MHz, 2.2MHz |
| Synchronous Rectifier |
Yes |
| Operating Temperature |
-40°C ~ 125°C (TJ) |
| Mounting Type |
Surface Mount |
| Package / Case |
14-PowerTFQFN |
| Supplier Device Package |
14-VQFN-HR (2x3) |
Key Features
- 2.7V to 16V input range with external bias (3.3V to 3.6V)
- 4V to 16V input range without external bias
- Integrated MOSFETs supporting 6A continuous output current
- D-CAP3™ control mode with fast load-step response
- Compatible with all ceramic output capacitors
- 600mV reference voltage with ±1% tolerance (-40°C to +125°C)
- 0.6V to 5.5V output voltage range
- Auto-skipping Eco-mode for high light-load efficiency
- Programmable current limit via external resistor
- Selectable frequency settings (600kHz, 1100kHz, 2200kHz)
- Internal fixed and external adjustable soft start
- Safe prebiased start-up capability
- Built-in circuit for slow output discharge
- Open-drain power-good output
- Self-restarting hiccup mode for overcurrent and undervoltage faults
- Fully RoHS compliant
- Compact 2mm × 3mm, 14-pin HotRod™ package with 0.5mm pitch
Typical Applications
- Server and cloud-computing point-of-load (POL) regulators
- Broadband, networking, and optical communications equipment
- Wireless infrastructure systems
- Industrial PC power supplies
- IP network camera power management
