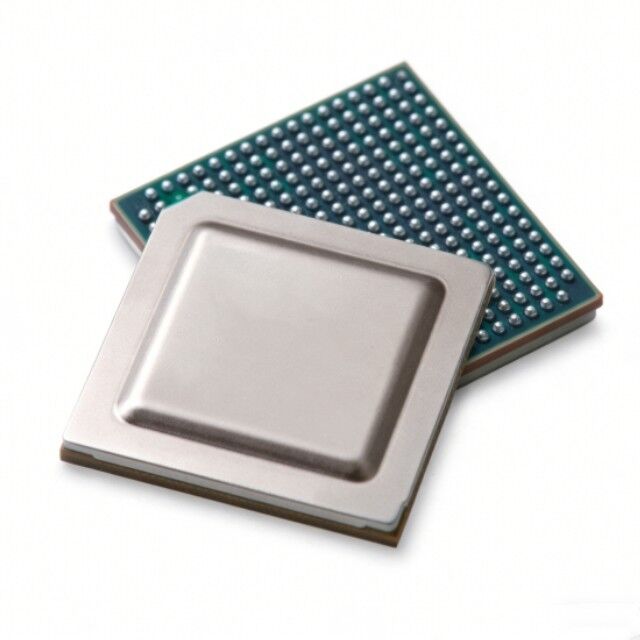

BCM85344A0KFSBG High-Density Dual 800G MACsec/IPsec Retimer PHY
Product Overview Of BCM85344A0KFSBG
BCM85344A0KFSBG is a 5-nm low-power, high-density PHY that integrates IEEE 801.1AE MACsec, IPsec GCM-AES-256b encryption, IEEE 1588, retimer, and equalizer functions.
BCM85344A0KFSBG supports 800-Gigabit Ethernet (GbE), 400GbE, 200GbE, 100GbE, 50GbE, and 25GbE applications. The device also supports both PAM-4 and NRZ data formats as well as MACsec encryption in Reverse Gearbox mode.
Key Features Of BCM85344A0KFSBG
• Supports IEEE 802.1AE (dataplane),IEEE 802.1X-2010 (MKA), IEEE802.1AEbw, IEEE 802.1AEbn, includingall cipher suites: GCM_AES_128/256and GCM_AES_XPN_128/256
• Supports 25G/50G/100G/200G/400G/800G Ethernet applications
• Dual 800GbE port supports FR8,LR8 QSFP-DD, and OSFP retimer/equalization/MACsec/IPsecencryption
• Dual 400GbE port with CDAUI8-to-CDAUI8 port support FR8, LR8QSFP-DD retimer/equalizationMACsec encryption
• Dual 200GbE port with CDAUI4-to-CDAUI4 port support FR4, LR4QSFP56 retimer/equalization/MACsec encryption
• Supports MACsec encryption inReverse Gearbox mode:
− 1 × 100G PAM-4 to 2 × 50G PAM-4
− 2 × 50G PAM-4 to 4 × 25G NRZ
• Dual 100GbE channels with CAUI4-to-CAUI4 port support SR4/LR4/CR4 QSFP28 retimer/equalization/MACsec encryption
• Supports failover mux for bothRetimer and Gearbox modes
• Supports IEEE 1588 timestampingwith Synchronous Ethernet (SyncE)recovered clock outputs
• Supports FEC terminate/regeneratefor all rates up to 800G
• MDC and MDIO host interface
• Integrated AC-coupling capacitorson all high-speed receivers on the lineand system side
• Interoperates with Broadcom ASICand merchant switch silicon
