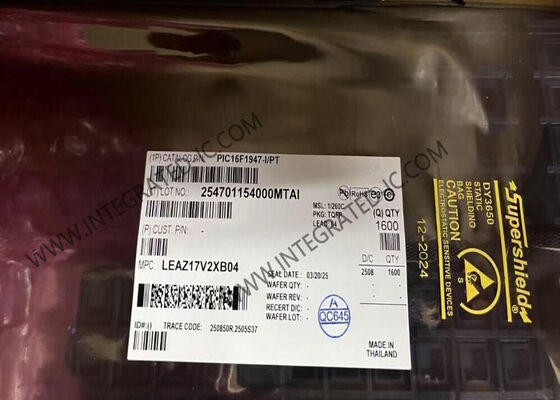

PIC16F1947-I/PT Microcontroller MCU
32MHz 8-Bit PIC XLP™ 16F Microcontroller IC in TQFP-64 Package
Product Overview
The PIC16F1947-I/PT is an 8-bit enhanced flash CMOS microcontroller featuring an integrated LCD driver and nanoWatt XLP ultra-low-power technology, housed in a 64-pin TQFP package. It is designed for embedded applications requiring display, touch functionality, high-precision analogue capabilities and low power consumption.
Technical Specifications
| Series | PIC® XLP™ 16F |
|---|
| Core Processor | PIC |
|---|
| Core Size | 8-Bit |
|---|
| Speed | 32MHz |
|---|
| Connectivity | I2C, LINbus, SPI, UART/USART |
|---|
| Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
|---|
| Number of I/O | 54 |
|---|
| Program Memory Size | 28KB (16K x 14) |
|---|
| Program Memory Type | FLASH |
|---|
| EEPROM Size | 256 x 8 |
|---|
| RAM Size | 1K x 8 |
|---|
| Voltage Supply | 1.8V ~ 5.5V |
|---|
| Data Converters | A/D 17x10b |
|---|
| Oscillator Type | Internal |
|---|
| Operating Temperature | -40°C ~ 85°C (TA) |
|---|
| Mounting Type | Surface Mount |
|---|
| Supplier Device Package | 64-TQFP (10x10) |
|---|
| Package / Case | 64-TQFP |
|---|
Key Features
- Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
- Flash Program Memory with self read/write capability
- 184 LCD segment drive support
- Internal 32MHz oscillator
- Integrated Capacitive mTouch Sensing Module
- Integrated Temperature Indicator
- 2xMI2C, 2xSPI, 2xEUSART w/auto baud
- 3 ECCP & 2 CCP (Enhanced/Capture Compare PWM)
- Comparators with selectable Voltage Reference
- 17 Channel 10b ADC with Voltage Reference
- 25mA Source/Sink current I/O
- Four 8-bit Timers (TMR0/TMR2/TMR4/TMR6)
- One 16-bit Timer (TMR1)
- Extended Watchdog Timer (EWDT)
- Enhanced Power-On/Off-Reset
- Brown-Out Reset (BOR)
- In Circuit Serial Programming (ICSP)
- Wide Operating Voltage (1.8V - 5.5V)
- Low Power PIC16LF1947 variant (1.8V - 3.6V)
