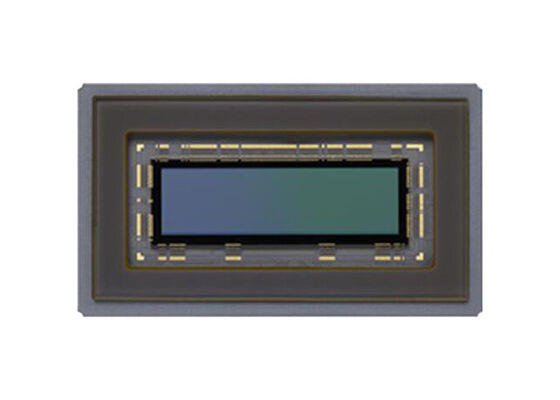

IMX902-AMR Sensor IC 1.1 Inches Global Shutter CMOS Image Sensor with 12.38 Megapixels

The IMX902-AMR is a global shutter image sensor featuring 2.74μm micro-pixels. By increasing the pixel count horizontally to 8K/6K (wide-angle), it achieves a high resolution of approximately 12.38 million effective pixels.

The IMX902-AMR supports C-mount lenses, which are widely used in industrial applications, delivering high-definition, wide-angle views with a resolution of 8K horizontally and 2K vertically. This enables a wider field of view in inspection and barcode recognition applications where conveyor belts are becoming increasingly wide.

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Global shutter function
• Input clock frequency 6 to 27 MHz (only for CSI-2) / 37.125 MHz / 74.25 MHz
• Number of recommended recording pixels: 8008(H) x 2040(V) approx. 16.33 M pixels
• Readout modes: All-pixel scan mode, Vertical/Horizontal 1/2 Subsampling mode, 2 x 2 FD binning mode, ROI mode, Vertical/Horizontal - Normal/Inverted readout mode
• Readout rate: Maximum frame rate in All-pixel scan mode: 10-bit 134.7 frame/s, 12-bit 91.5 frame/s
• At high frame rates, control so as not to exceed Tj = +100°C
• Variable-shutter speed (1 XHS unit step)
• Pulse Output Function
• The monitor output for Integration period (TOUT0)
• 10-bit / 12-bit A/D converter
• CDS/PGC function
• 0 dB to 24 dB: Variable analog Gain (0.1 dB step)
• 24.1 dB to 48 dB: Fixed analog Gain: 24 dB + variable digital Gain: 0.1 dB to 24 dB (0.1 dB step)
• I/O interface: SLVS (2ch/4ch/8ch) output, SLVS-EC (1 Lane/2 Lane/4 Lane) output, CSI-2 (1 Lane/2 Lane/4 Lane) output
• CRA characteristics: The target CRA is 9.7 degree at 100% image height

• FA Cameras
• ITS Cameras
